Twin screw UPVC & CPVC pipe plant

Rajoo Bausano produces a wide range of pipe plants and accessories for flexible and rigid pipes.

Rajoo Bausano offers TWIN-SCREW EXTRUDERS WITH BAUSANO'S MULTIDRIVE SYSTEM in various sizes like RBMD-30, RBMD-52, RBMD-66, RBMD-75, RBMD-90, RBMD-115, RBMD-118, RBMD-125, RBMD-130, RBMD-158, RBMD-170 with outputs ranging from 250 kg/ to 2000 kg/hr and OD range from 20mm to 1000mm

Bausano's unique patented MULTIDRIVE power transmission system with invertor has following distinct advantages

  • Elimination of torsional stress on the driving shaft
  • Torque subdivision
  • Suitable to process CPVC
  • Power saving upto 40 % in multidrive benefits

Rajoo Bausano extruders are equipped with special coated screw for longer life.

It is equipped with back pressure control by load cell which is extremely beneficial to run high torque formulations. This also displays the back pressure and audio-visual alarm can be set for 2 stages.

Thermo control unit maintains screw temperature to cater to wide range of applications, better processability, best product quality and reduced dosage of expensive additives. Rajoo Bausano screws come with longer L/D ratio upto 36 to enhance melt homogenization at higher output levels using similar size extruder and motor ratings resulting in lower energy consumption. Two vacuum chambers are provided to save on time during cleaning. The screw design provides for homogeneous melting thereby avoiding dry blend suction by vacuum pump. This keeps the vacuum pump area neat and clean.

Rajoo Bausano offers a wide range of die heads to produce pipe dia from 20mm to 1000mm to ensure excellent pipe quality. The spider is made from stainless steel.

Rajoo Bausano's design of calibrator for high line speed is unique. Vacuum tank cooling tanks are made of stainless steel for high corrosion resistance and long life. Design is unique for superior cooling efficiency. Three axis adjustment system with motorized lateral position allows quick and precise positioning.

Multi track haul-off, independent AC servo motor and drive for optimum pulling force prevents ovality even in large diameter and thin wall pipes. Also ensures precise speed control at low speed and excellent synchronization. Long contact length ensures good grip on the pipe.

Planetary saw for smooth and clean cut and longer life is provided. Online socketing is offered according to customer’s requirement.

Gravimetric / volumetric dosing system and thickness measurement device is offered according to application and customer’s requirement.

Touch screen PLC is provided for easy operation, data storage, history, report, maintenance schedule and much more. Maintenance alarms for oil change , oil filter, oil level, degassing water filter and more are included.

TWIN SCREW UPVC & CPVC PIPE PLANTS APPLICATIONS

    • Hot and cold water delivery pipe ( CPVC )
    • Irrigation pipe
    • Industrial pipe
    • Plumbing pipe
    • Column pipes
    • Conduit pipe / Ducting pipe
    • Casing pipe
    • Construction pipe
    • Drain / waste / vent pipe

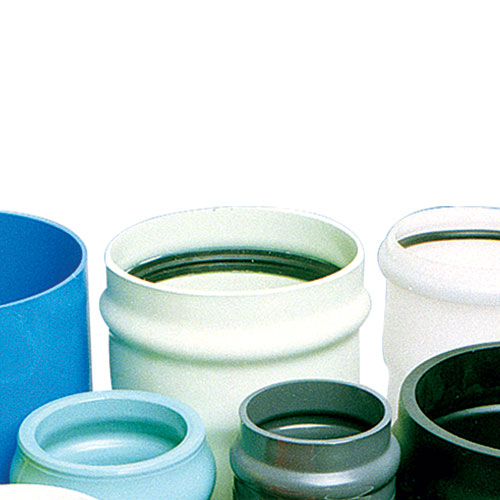

Application Gallery - (TWIN SCREW UPVC & CPVC PIPE PLANTS)
